Rubber-Aluminum Car Seal Recycling Line
Automotive sealing strips are typically made from a composite of rubber and aluminum strips and are widely used in vehicle doors, windows, trunks, and other areas. Due to their complex structure and tightly mixed materials, traditional methods have made efficient separation and recycling difficult.
UTMACH's rubber-aluminum car seal recycling line is specifically designed for volume reduction and separation of these mixed materials. This line effectively separates the rubber and aluminum in the seal, achieving resource recycling.

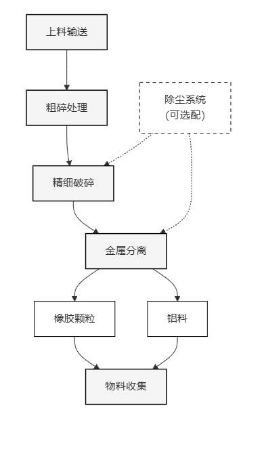

Workflow
Feeding and Conveying:Automotive sealing strips are fed into the shredding system via a conveyor.
Coarse Crushing:A shredder crushes the sealing strips into 5-10 cm flakes.
Fine Crushing:A pulverizer further refines the material to 1-20 mm.
Metal Separation:A magnetic separator and eddy current separator separate aluminum and rubber particles.
Dust Removal System:Optional dust removal equipment is available to maintain a clean workshop.
Material Collection:The separated rubber particles and aluminum are collected separately and can be directly recycled.
Main Equipment
Chain conveyor
Shredder
Fine crusher
Eddy current separator
Magnetic separator
Dust collection system
Electronic control system
Equipment Advantages
High Separation Rate: Rubber and aluminum separation purity can reach over 98%.
Modular Design: Customizable to meet customer site and production requirements.
Automated Control: PLC-based fully automatic operation ensures safety and stability.
Low Energy Consumption and Low Noise: Utilizes a high-efficiency motor and vibration-damping structure.
Energy-Friendly: Fully enclosed dust removal system meets environmental standards.
Scope of Application:
This production line is suitable not only for automotive sealing strips, but also for metal-containing rubber products such as aluminum-edged rubber strips, rubber-aluminum composite pipes, aluminum-plastic sealing tapes, and building door and window sealing materials.
UTMACH's rubber-aluminum car seal recycling line is specifically designed for volume reduction and separation of these mixed materials. This line effectively separates the rubber and aluminum in the seal, achieving resource recycling.
Workflow
Feeding and Conveying:Automotive sealing strips are fed into the shredding system via a conveyor.
Coarse Crushing:A shredder crushes the sealing strips into 5-10 cm flakes.
Fine Crushing:A pulverizer further refines the material to 1-20 mm.
Metal Separation:A magnetic separator and eddy current separator separate aluminum and rubber particles.
Dust Removal System:Optional dust removal equipment is available to maintain a clean workshop.
Material Collection:The separated rubber particles and aluminum are collected separately and can be directly recycled.
Main Equipment
Chain conveyor
Shredder
Fine crusher
Eddy current separator
Magnetic separator
Dust collection system
Electronic control system
Equipment Advantages
High Separation Rate: Rubber and aluminum separation purity can reach over 98%.
Modular Design: Customizable to meet customer site and production requirements.
Automated Control: PLC-based fully automatic operation ensures safety and stability.
Low Energy Consumption and Low Noise: Utilizes a high-efficiency motor and vibration-damping structure.
Energy-Friendly: Fully enclosed dust removal system meets environmental standards.
Scope of Application:
This production line is suitable not only for automotive sealing strips, but also for metal-containing rubber products such as aluminum-edged rubber strips, rubber-aluminum composite pipes, aluminum-plastic sealing tapes, and building door and window sealing materials.
