Automobile Shell Recycling Line
The automobile shell recycling line is a comprehensive recycling system designed for dismantled vehicle shells, body panels, engine casings, and aluminum-plastic components. Developed by UTMACH, the system utilizes multi-stage crushing and high-precision sorting to efficiently separate and recover steel, non-ferrous metals, plastics, and rubber.
This system is widely used in industries such as automobile recycling companies, metal resource processing centers, and recycled steel mills.

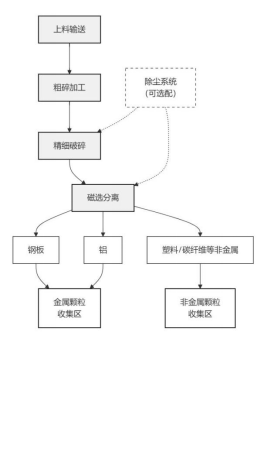

Workflow
Feeding and Conveying: The car shells are fed into the shredding system via a conveyor.
Coarse Shredding: A shredder breaks large pieces of car shell into irregular metal flakes measuring 200-500mm.
Fine Shredding: A crusher breaks the material into particles measuring 10-100mm.
Magnetic Separation: A magnetic separator and eddy current separator separate steel plates, aluminum, plastic, and carbon fiber particles.
Dust Removal System: Optional dust removal equipment is available upon request to remove lightweight debris, plastic, rubber, sponge, paint, and other non-metallic impurities, maintaining a clean workshop.
Material Collection: The separated metal and non-metallic particles are collected separately for recycling.
Main Equipment:
Conveyor
Shredder
Fine Crusher
Magnetic Separator
Eddy Current Separator
Dust Removal System
Electronic Control System
Equipment Advantages
High Crushing Efficiency: The multi-stage crushing system design provides a high crushing ratio and high output, capable of processing entire vehicle hulls.
High Metal Recovery: The magnetic separation, eddy current, and dust removal systems enable metal recovery rates exceeding 98%.
Intelligent Control System: PLC automatic monitoring enables intelligent, coordinated control.
Low Noise and Dustproof: The equipment includes an enclosed crushing chamber and dust removal system, ensuring environmental compliance.
Easy Maintenance: The modular structure facilitates easy inspection and component replacement.
This system is widely used in industries such as automobile recycling companies, metal resource processing centers, and recycled steel mills.
Workflow
Feeding and Conveying: The car shells are fed into the shredding system via a conveyor.
Coarse Shredding: A shredder breaks large pieces of car shell into irregular metal flakes measuring 200-500mm.
Fine Shredding: A crusher breaks the material into particles measuring 10-100mm.
Magnetic Separation: A magnetic separator and eddy current separator separate steel plates, aluminum, plastic, and carbon fiber particles.
Dust Removal System: Optional dust removal equipment is available upon request to remove lightweight debris, plastic, rubber, sponge, paint, and other non-metallic impurities, maintaining a clean workshop.
Material Collection: The separated metal and non-metallic particles are collected separately for recycling.
Main Equipment:
Conveyor
Shredder
Fine Crusher
Magnetic Separator
Eddy Current Separator
Dust Removal System
Electronic Control System
Equipment Advantages
High Crushing Efficiency: The multi-stage crushing system design provides a high crushing ratio and high output, capable of processing entire vehicle hulls.
High Metal Recovery: The magnetic separation, eddy current, and dust removal systems enable metal recovery rates exceeding 98%.
Intelligent Control System: PLC automatic monitoring enables intelligent, coordinated control.
Low Noise and Dustproof: The equipment includes an enclosed crushing chamber and dust removal system, ensuring environmental compliance.
Easy Maintenance: The modular structure facilitates easy inspection and component replacement.
