Wastewater Grinder

The Wastewater Grinder from United Tech Machinery is a high torque, low rotating speed and double shaft grinder under water. It is designed to pulverizing all kinds of solid waste ( clothing, plastic, trash, wood, aluminum can, glass bottle and other debris) to 8-12mm in the modern waste water and sludge to protect pumps, prevents binding and clogging problems. Accommodates high speed water flow while pulverizing various solid waste into particles that let the water flow harmlessly through pumps, pipes and so on.
The Waste water grinder is suitable for Waste Water Treatment Plant, Water works, Rain Pump station and the water inlet channel ( well), intercepts floating materials in water, guarantees normal operation of subsequent pump, it's an advance intercepting waste water device.
Our grinders series include pip-line Wastewater Grinder,channel Wastewater Grinder(non-drum grinder ,Single drum grinder, double drum grinder)

 Waste Water Grinder Product principle
The design of the cutting blade is made of titanium alloy, and an effective and reliable product standard has been established through continuous technological progress and design innovation.
Titanium alloy cutting blades can chop up a variety of solid particles that damage other equipment and have been proven to be suitable for a variety of complex environments.
1. Solid particles enter the cutting area along with sewage;
2. Solid particles are trapped by the drum and exported to the cutting room;
3, most of the sewage and small enough particles through the drum area;
4. Solid particles are cut and pass through the cutting chamber;
5. The crushed particles flow downstream.

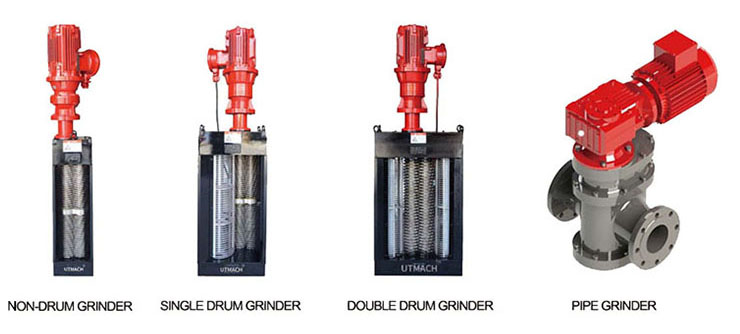

PIPE TYPE Grinder
For low flow, buildings and small pump station applications the grinder is a reliable grinder in a small package. It grinds wastewater to eliminate costly pump problems and sewer back-ups. Suitable to flow rate less than 300m3/hour.
Non-drum grinder
Non-drum grinder, suitable to flow rate less than 340m3/hour.
Single drum grinder
Single drum grinder, suitable to flow rate as 400-1000m3/hour.
Double drum grinder
Double drum grinder, suitable to flow rate over 1100m3/hour.

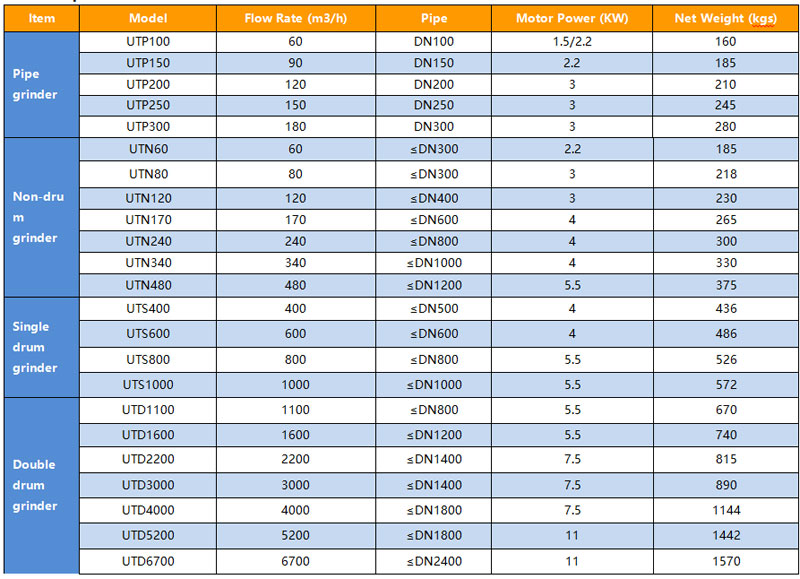

Technical parameter

Note:
1.The voltage about the power supply can be selected by the customer’s specific requirements.
2.The grinder capacity can be influenced by the material composition and output size.
We provide customzied machines. The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
