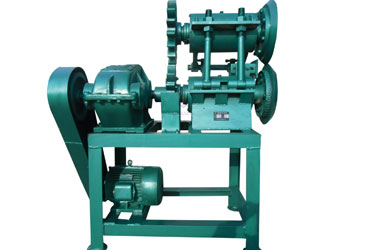

Tire Strip Cutter

Tire Strip Cutter
This tire slice cutter is utilized in cutting the tire crown and side wall of waste tire into rubber slice.Further cut the tire tread and sidewall into slice, slice width is adjusted. Tire circle mouth is retained.Two cutting discs using a special metal heat treatment, hard and durable, and can be repeated grinding use.The materials of disc knife is a special metal heat treatment, so the knife is high hard, wearable and durable.

Main technical Specification

Production capacity 1000kg/h
Motor power 5.5kw
Motor rotating speed 1440r/min
Voltage 380V/50hz
Speed reducer model 350
Speed ratio 31.5
Size of discharged materials 20-55mm
Machine weight 750kg
Overall dimension 1300*800*1500mm

 Note:
1. The voltage about the power supply can be selected by the customer’s specific requirements.
2. The Cutter capacity can be influenced by the material composition and output size.
The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
